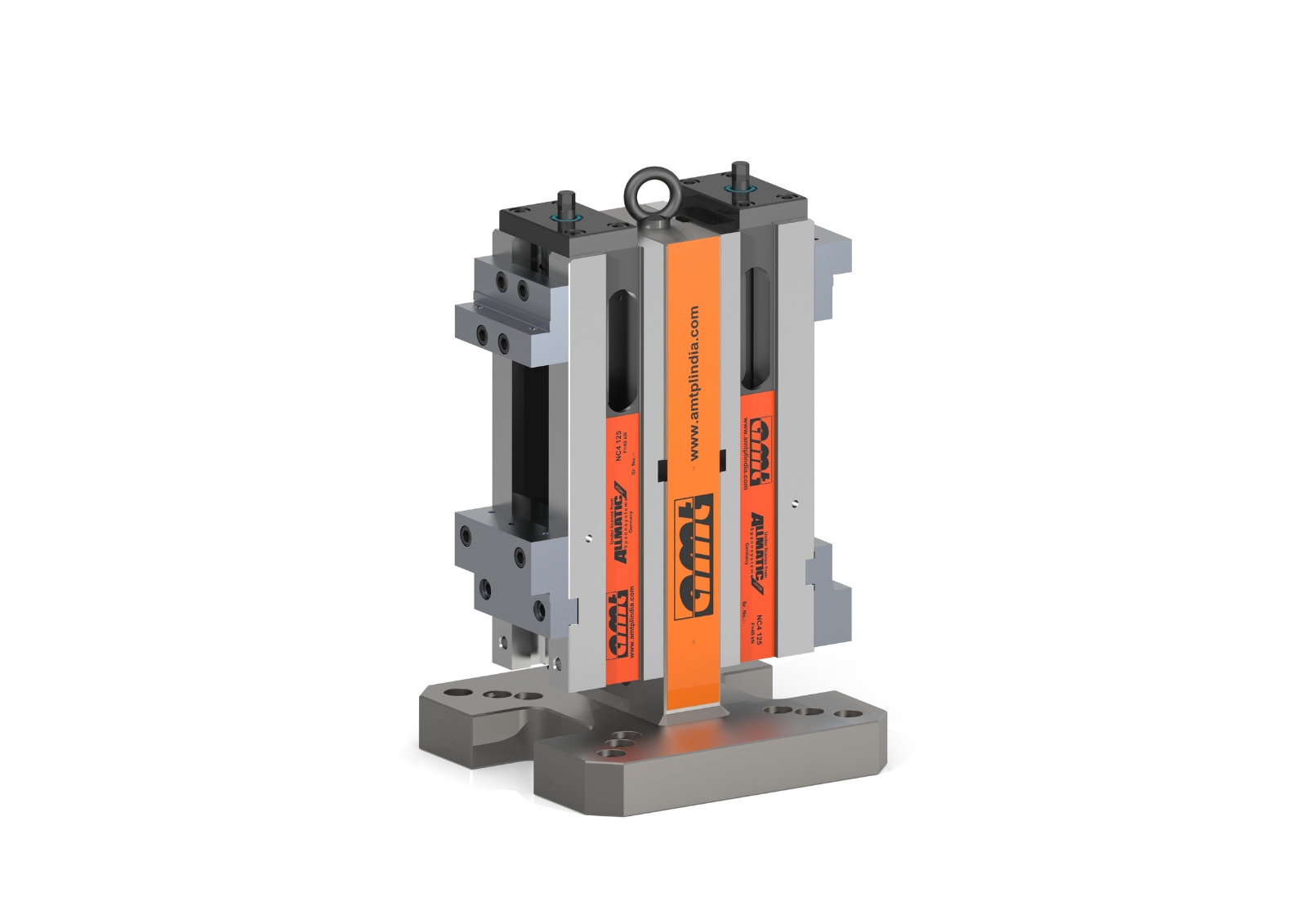

Back to Back – NC4
Article number:FG/WH/TOMB/00BKBNP003
Scope of Application:
- Modular clamping system for horizontal machining centre
Clamping Column Features:
- Cast Iron GG 30.
- Heat Treated Normalized
- Alloy steel body and case hardened.
- Clamping force increments can be pre-set.at most, two revolutions are required to reach the max. clamping force.
- Preselect able and reproducible clamping forces enable the work piece position to be repeated within a tolerance of less than 0.01 mm.
- Since the work piece is clamped by pulling down, floating up is prevented in spit e of the powerful clamping force.
- Individual adaption to your machine (pallet, travers and work piece) is possible.
- Two clamping point permit 3-sided machining.
- Clamping range S1 in mm – 0-182
- Clamping range S2 in mm – 131-312
- Max. clamping force in kN -30
- Weight in kg -127
- Back to Back clamping column NC4 – 1 Nos.

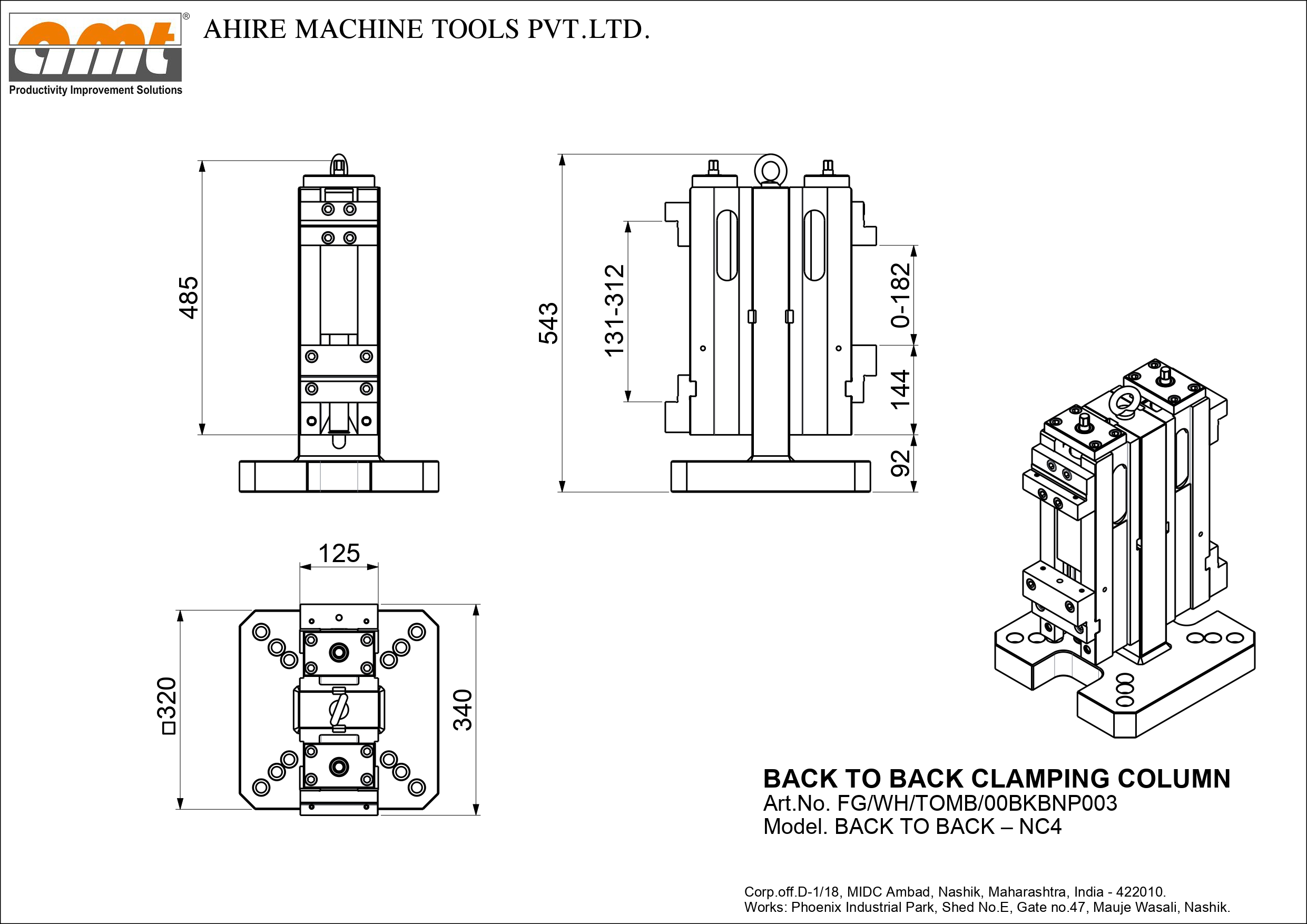

- CAD
- Technical Information
- Operating Manual
