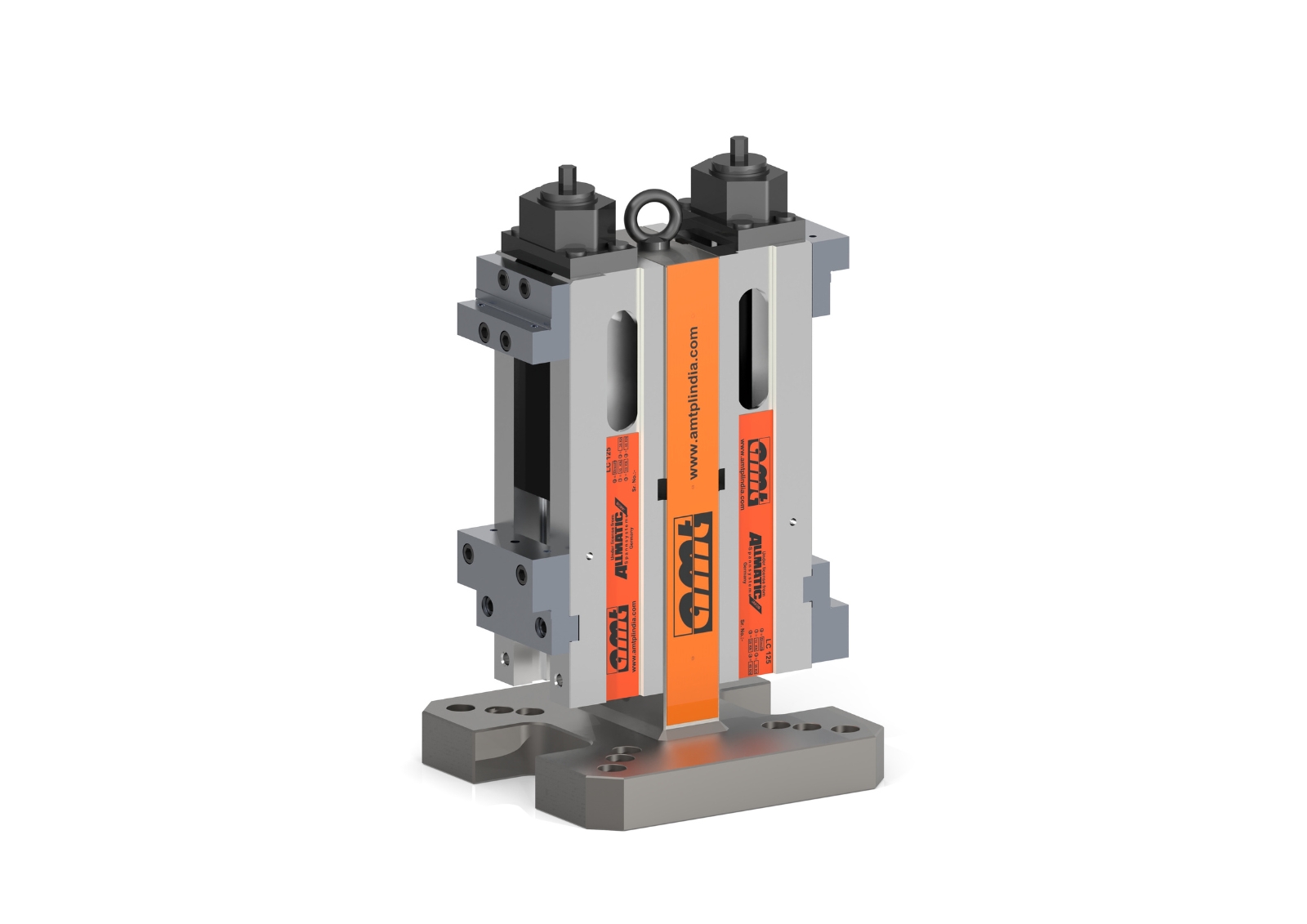

Back to Back – LC 125
Article number:FG/WH/TOMB/00BKBNP002
Scope of Application:
- Modular clamping system for horizontal machining centre
Clamping Column Features:
- Cast Iron GG 30.
- Heat Treated Normalized
- Alloy steel body & case hardened.
- Extreme accuracy for your machining.
- Clamping force can be pre-set in 4 increments.
- At most, 2 revolutions are required to reach the max. clamping force.
- Preselect able and reproducible clamping force enable the work piece position to be repeated within a tolerance of less than 0.01 mm.
- Clamping range S1 in mm – 0-182
- Clamping range S2 in mm – 131-312
- Max. torque in Nm -30
- Max. clamping force in kN -40
- Weight in kg -126
- Back to Back clamping column LC 125 – 1 Nos.
- LC 125 Vise- 2 Nos.
- Crank Handle – 1 Nos.
- Tenon 20×16 – 2 Nos.

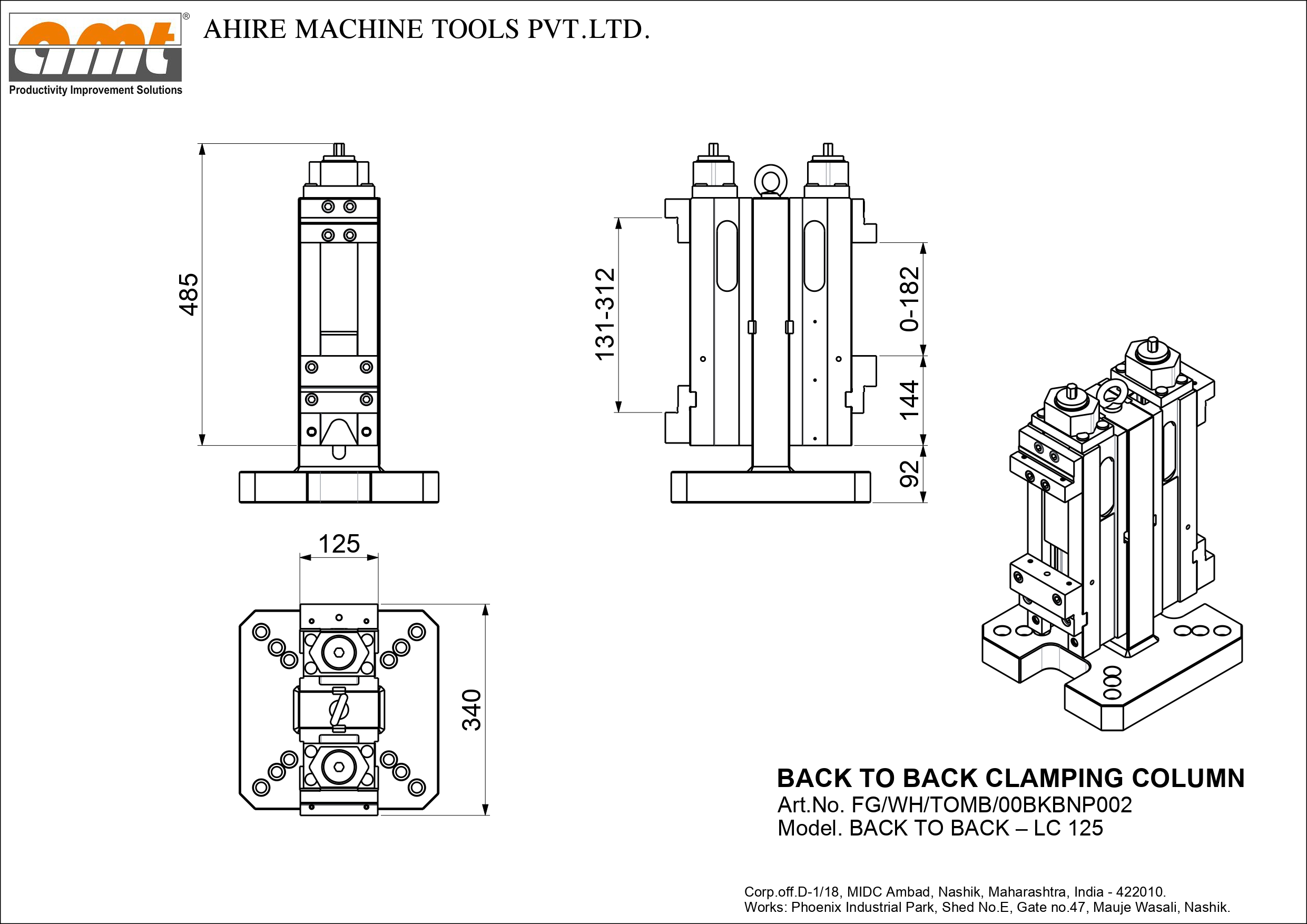

- CAD
