• Offers high accuracy.
• Reduces installation work cost.
• Can be fixed using an anchor bolt.
• Offers the best rigidity.
• Easy installation.
• Most suitable for installing machines such as milling machines, radial drilling machines, planers, and surface plates.

AMT machine leveller, series MU is a one stop solution for precise yet cost efficient installation of heavy machinery and
equipment.
A key design element is the central slot, which allows for installation after grouting bolts are secured to the foundation.
Large supporting surface and high levelling adjustment is available.
As there is equal load distribution through two lifting wedges, the force required to raise or lower a machine is reduced
considerably, resulting in effortless and precision levelling





DescriptionUOMProduct Code
AMT - MU1
Max load per Mount kg8000

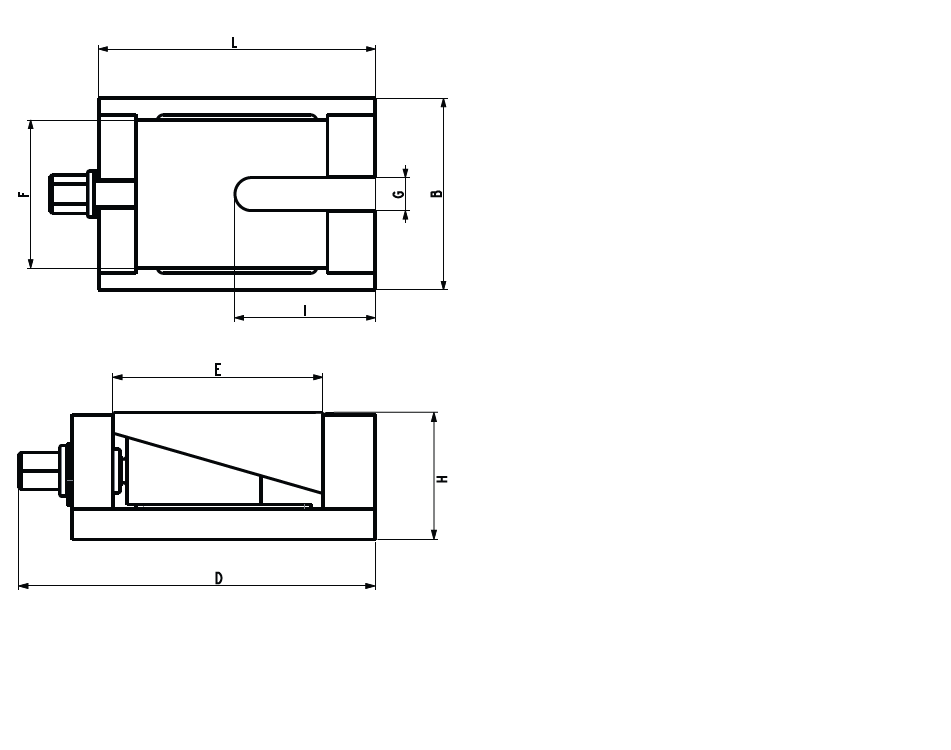

Dimensional Data
Stud size (M)mmM20 x 1.5
Length × Width × Height (L×B×H)mm209 × 145 × 86
Adjustment Strokemm11
Resting Dimension (ExF)mm145 × 112
Slot Diameter (G)mm25
Slot Length (I)mm106
Overall Length (D)33246
