• Alloy steel clamps and toughened body.
• Jaw plates case-hardened.
• Easily used and clamping element.
• Fast adjustment.
• The jaws are reversible, smooth side for machined parts, serrated side for rough surfaces.
• We recommend using two bolts to mount the clamp to the machine table.

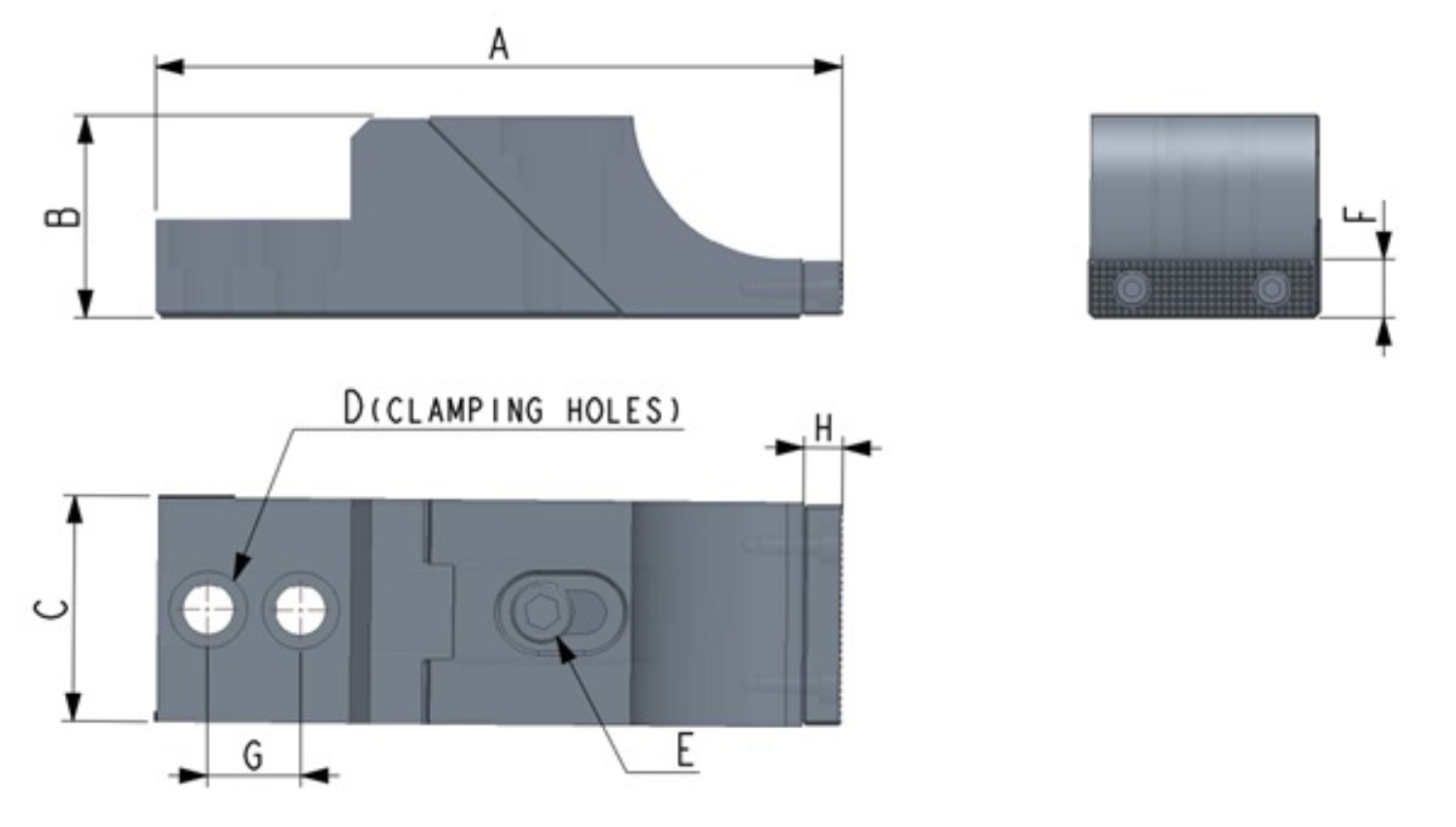

| MODEL | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| EZ-LC-M 8 | 120 | 40 | 40 | M10 | M8 | 14 | 10 | |
| EZ-LC-M 10 | 177 | 52 | 58 | M12 | M10 | 14 | 24 | 10 |
