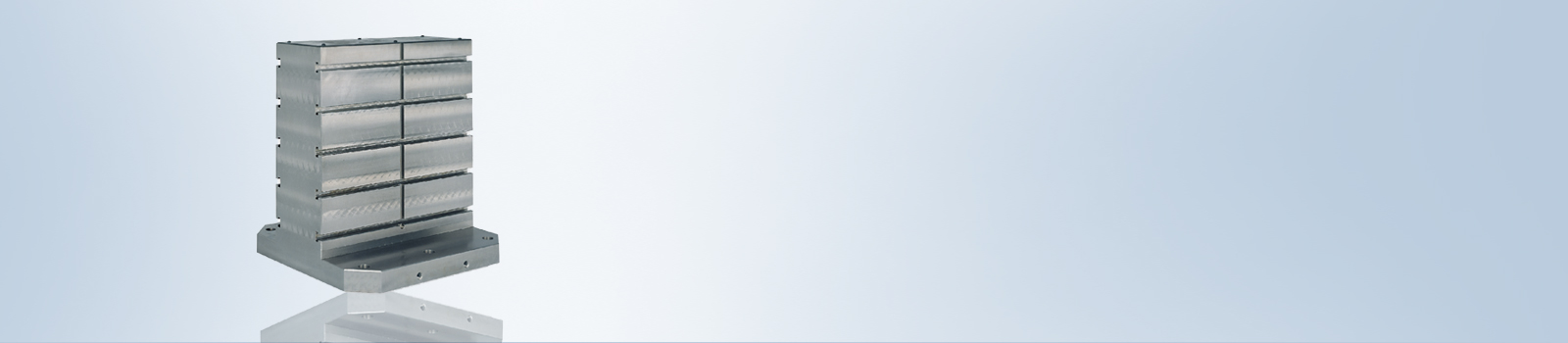

Material : Cast Iron GG30(DIN) / High Strength Aluminum Casting
Heat Treated (Normalized)
Features : 1) T-Slots available in M14 & M18
2) T-Slots running horizontally
3) Key-way running vertically
4) Easily adapts to standardized jig components.
5) Eye bolt & top cover included.
Application : Horizontal machining center.

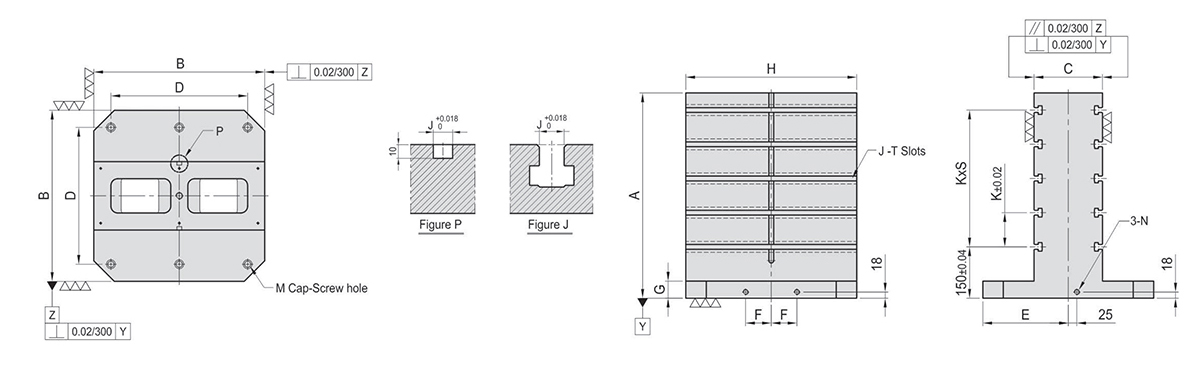

| Model No. | A | B | C | D | E | F | G | M | N | H | K | S | Mounting Holes | Weight in kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cast Iron | Aluminium | ||||||||||||||
| TST/RT/150400 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | M16 | M16 | 400 | 100 | 3 | 4 | 170 | 60 |
| 650 | 220 | 92 | |||||||||||||
| TST/RT/200500 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | M16 | M16 | 500 | 100 | 4 | 6 | 290 | 87 |
| TST/RT/250630 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | M16 | M16 | 630 | 125 | 4 | 6 | 440 | 165 |
