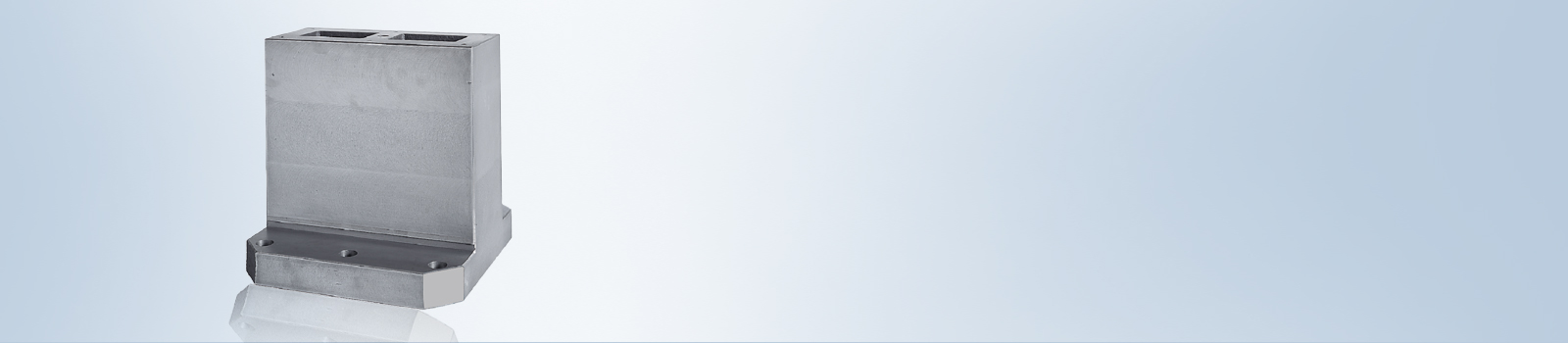

Material : Cast Iron GG30(DIN)/ High Strength Aluminum Casting
Heat Treated (Normalized)
Features : 1) Fully machined on all sides.
2) Side edge locating holes on base.
3) Top cover to keep out chips and coolant.
4) Eye bolt for lifting.
Application : Horizontal machining center.

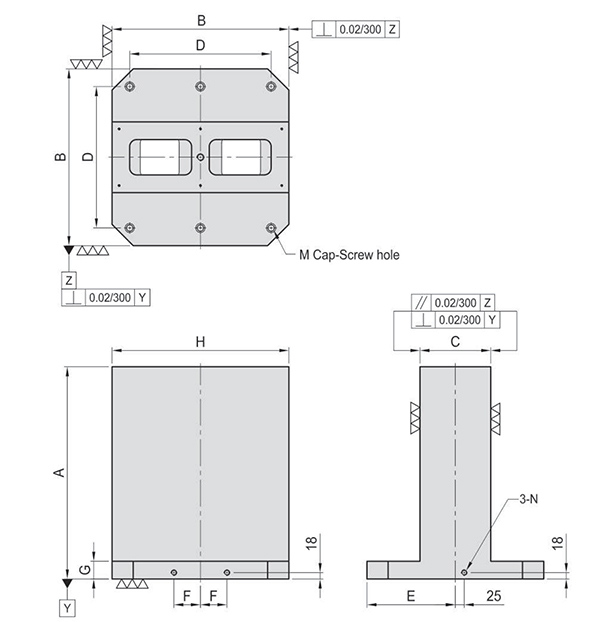

| Model No. | A | B | C | D | E | F | G | H | M | N | Mounting Holes | Weight in kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cast Iron | Aluminium | ||||||||||||
| TSP/RT/80300 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | M12 | M12 | 4 | 115 | - |
| TSP/RT/150400 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 4 | 170 | 62 |
| 650 | 215 | 86 | |||||||||||
| TSP/RT/200500 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 8 | 270 | 96 |
| TSP/RT/250630 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 8 | 445 | 176 |
