• Alloy steel washer and case hardened.
• Easily used and clamping element.
• Fast adjustment.
• The hardened knife edge washer is suitable for clamping rough pieces
• Not designed for clamping hardened materials with the torque specified.
• Clockwise rotation is recommended for clamping. The hex socket on the screw should be on the right after tightening.

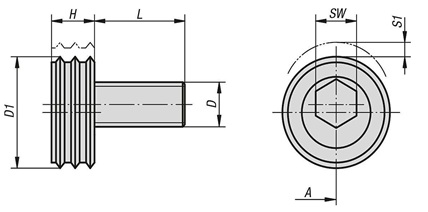

| MODEL No. | A | D | D1 | H | L | SW | ST(travel) | CLAMPING FORCE | CLAMPING TORQUE |
|---|---|---|---|---|---|---|---|---|---|
| EZ-KEW-M12 | 12.7 | M12 | 25.4 | 13 | 20 | 8 | 1 | 10 kN | 40 Nm |
| EZ-KEW-M12 | 15.05 | M16 | 30.1 | 13.8 | 20 | 12 | 1.2 | 12 kN | 60 Nm |
