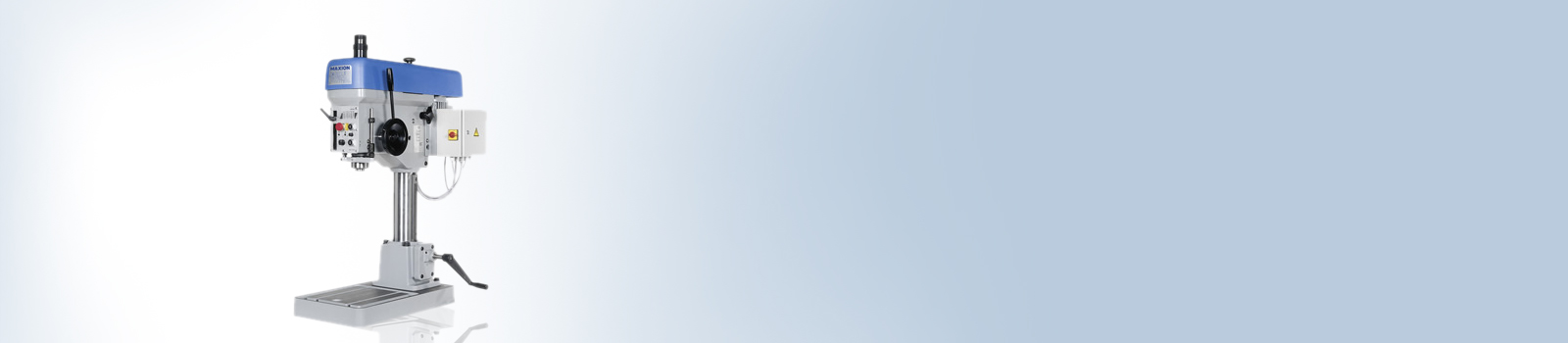

BT 23 GL
High performance thread cutting machine with leadscrew feed and
optimum arrangement for
prevention of tool breakage. Program
for 1-off and flow production. Electronically controlled
motor braking for single stroke operation.Easy change of leadscrew by means of quick coupling.
Screw-in advance lever is included.
| Description | Unit | BT 23 GL |
|---|---|---|
| Thread capacity | M 3 - M 20 | |
| Thread per hour | 1200 | |
| Standard capacity | mm | 28 |
| Spindle | MT 3 | |
| Depth of thread | mm | 90 |
| Spindle travel | mm | 120 |
| Spindle to column | mm | 260 |
| Spindle to table | mm | 220 to 600 |
| Table surface | mm | 390 x 420 |
| Column diameter | mm | 110 |
| Total height | mm | max. 1,200 |
| Weight | kg | 270 |
| Special motor | kW | 0.9 |
| 5 Spindle speeds | rpm | 100 - 900 |
| 5 Spindle speeds | rpm | 150 - 1,350 |
| 5 Spindle speeds | rpm | 100 - 900 |
| 5 Spindle speeds | rpm | 150 - 1,350 |
