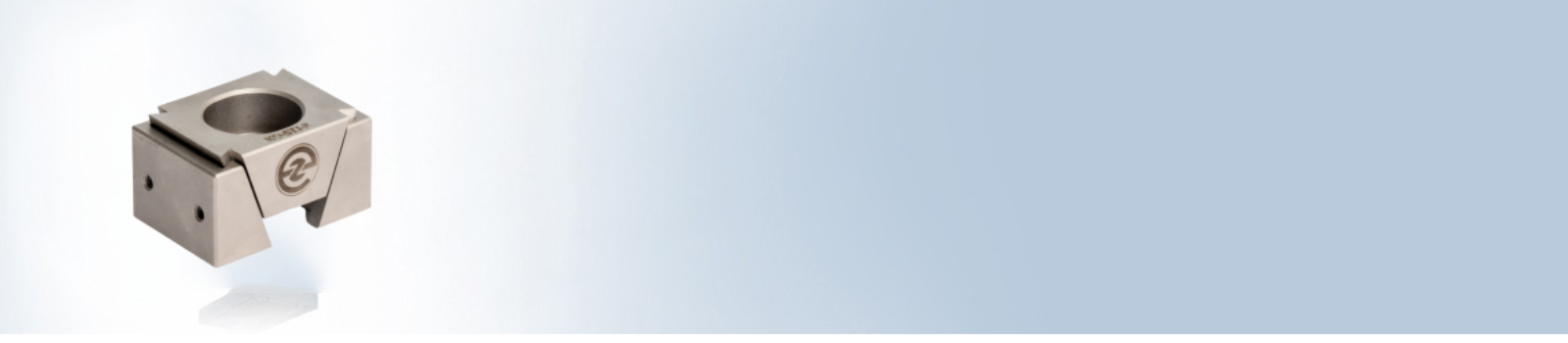

Wedge clamp is provided with smooth clamping face & fastening
Screw thread M4 to accommodate various additional customized
jaws of various shapes according to workpiece geometry

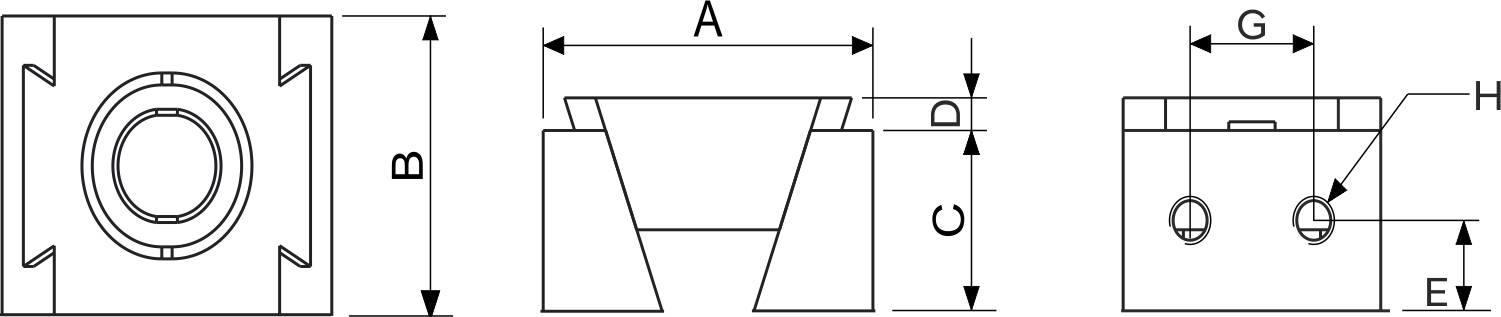

| MODEL | A | B | C | E | G | H | CLAMPING SCREW DIN912 | TIGHTENING TORQUE (Nm) | CLAMPING FORCE (Kn) | WEIGHT in g approx. | HARDNESS HRCmin. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MEAN | MAX | |||||||||||
| KD-STJ-1 | 32 | 34 | 36 | 25 | 15 | 7.5 | 12 | 4xM4 | M8 | 20 | 15 | 70 | 30-35 |
| KD-STJ-2 | 42 | 45 | 48 | 30 | 24 | 11.5 | 12 | 4xM4 | M12 | 60 | 30 | 165 | 30-36 |
| KD-STJ-3 | 56 | 60 | 64 | 40 | 30 | 15 | 12 | 4xM5 | M16 | 120 | 50 | 390 | 30-35 |
