Wedge clamp with serrated jaws is a general purpose clamp.
Serrations on both sides of the jaws hold workpiece firmly
in any condition as they create high friction

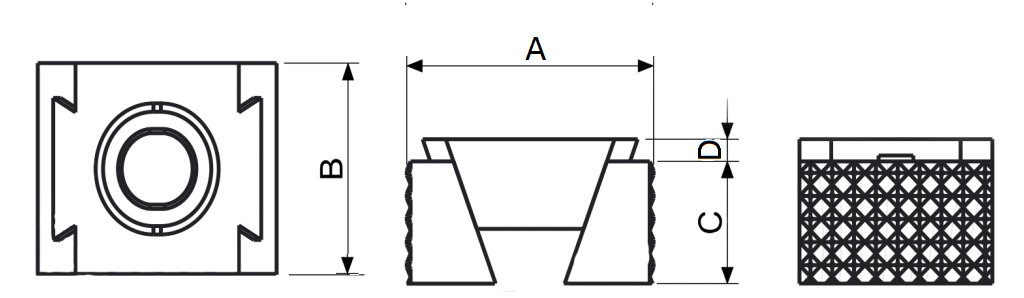

| A | B | C | E | CLAMPING SCREW DIN | TIGHTENING TORQUE, Nm | CLAMPING FORCE, Kn | WEIGHT in g approx. | HARDNESS HRCmin. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | optimum | Max | |||||||||
| KD-SJ-1 | 32 | 34 | 36 | 25 | 15 | 2.5 | M8 | 30 | 15 | 70 | 30-35 |
| KD-SJ-2 | 42 | 45 | 49 | 30 | 23 | 4.3 | M12 | 65 | 30 | 165 | 30-36 |
| KD-SJ-3 | 56 | 60 | 64 | 40 | 30 | 5 | M16 | 120 | 50 | 390 | 30-35 |
